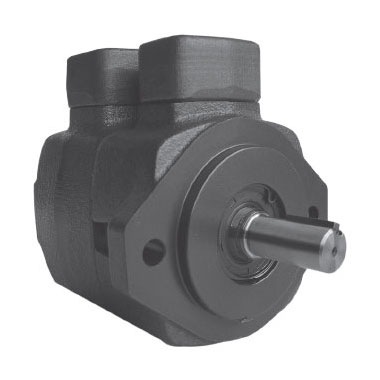

台湾TAICIN泰炘VF定量高压泵
定量型
壓力為210kgf/cm2葉片幫浦
排量範圍大, 8cc到237cc
特性
- 高效率、高壓運轉、性能穩定。
- 無振動、低噪音。
- 高壓時,吐出量穩定。
- 馬力損失小,運轉效率高。
規格
型式號碼 | 無負載 每分鐘吐出量 |
運轉速度 (RPM) | 最高設定壓力 | |||||
---|---|---|---|---|---|---|---|---|
Running Speed (rpm) | 最高 | 最低 | Kgf/cm² | |||||
1000 | 1200 | 1500 | 1800 | |||||
VF15 | VF15-06 | 6.2 | 7.4 | 9.3 | 11.2 | 1800 | 800 | 210 |
VF15-08 | 8.1 | 9.7 | 12.1 | 14.6 | ||||
VF15-11 | 11.2 | 13.4 | 16.8 | 20.1 | ||||
VF15-14 | 14.3 | 17.1 | 21.5 | 25.7 | ||||
VF15-17 | 17.1 | 20.5 | 25.6 | 30.7 | ||||
VF15-19 | 19.2 | 23.0 | 28.8 | 34.5 | ||||
VF15-23 | 23.3 | 27.9 | 34.9 | 41.9 | ||||
VF15-26 | 26.1 | 31.3 | 39.1 | 46.9 | ||||
VF15-31 | 31.1 | 37.3 | 46.6 | - | 175 | |||
VF25 | VF25-18 | 18.1 | 21.7 | 27.2 | 32.6 | 1800 | 800 | 210 |
VF25-22 | 22.1 | 26.5 | 33.2 | 39.8 | ||||
VF25-26 | 26.2 | 31.4 | 39.3 | 47.1 | ||||
VF25-32 | 32.1 | 38.5 | 48.1 | 57.7 | ||||
VF25-38 | 38.2 | 45.8 | 57.3 | 68.7 | ||||
VF25-43 | 43.2 | 51.8 | 64.8 | 77.7 | ||||
VF25-47 | 47.1 | 56.5 | 70.0 | 85.0 | ||||
VF25-52 | 52.3 | 62.7 | 78.4 | 94.1 | ||||
VF25-60 | 60.2 | 72.7 | 90.3 | 108.3 | ||||
VF25-65 | 65.3 | 78.3 | 97.9 | 117.5 | ||||
VF25-75 | 75.0 | 90.1 | 112.5 | - | ||||
VF35 | VF35-60 | 60.3 | 72.3 | 90.4 | 108.5 | 1800 | 600 | 175 |
VF35-66 | 66.4 | 79.6 | 99.6 | 119.5 | ||||
VF35-76 | 76.3 | 91.5 | 114.4 | 137.3 | ||||
VF35-82 | 82.2 | 98.6 | 123.3 | 147.9 | ||||
VF35-88 | 88.3 | 105.9 | 132.4 | 158.9 | ||||
VF35-94 | 94.5 | 113.4 | 141.7 | 170.1 | ||||
VF35-108 | 108.2 | 129.8 | 162.3 | 194.4 | ||||
VF35-116 | 116.1 | 139.3 | 174.1 | 208.9 | ||||
VF35-125 | 124.6 | 149.5 | 186.9 | - | 1500 | |||
VF45 | VF45-136 | 136.8 | 164.0 | 204.0 | 246.0 | 1800 | 600 | 165 |
VF45-156 | 156.2 | 188.0 | 234.0 | 280.0 | ||||
VF45-189 | 189.5 | 227.0 | 284.0 | 340.0 | ||||
VF45-216 | 216.0 | 260.0 | 324.0 | - | ||||
VF45-237 | 237.0 | 285.0 | 355.0 | - |
