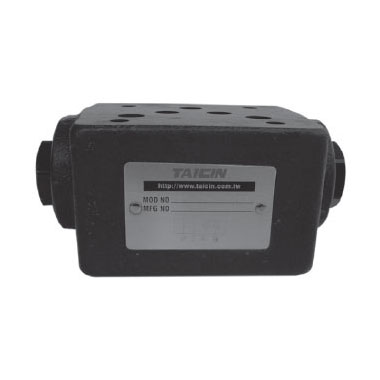

台湾TAICIN泰炘MP积层式引导止回阀
具有止回閥功能,並增加可引導迴路. 當引導迴路沒動作時,就單純是指回閥的功能,油路只能一個方向流動,無法回流;
除此之外,還可配合引導壓力, 達到導壓開啟或閉鎖的功能,使油路可雙向流動
特性
- 體積小、輕巧、耐用。
規格
型式號碼 | 最大壓力 (KG/CM²) | 最大流量 (L/MIN) |
---|---|---|
MP-02A (B) (W) | 210 | 35 |
MP-03A (B) (W) | 70 | |
MP-04A (B) (W) | 300 | |
MP-06A (B) (W) | 180 |

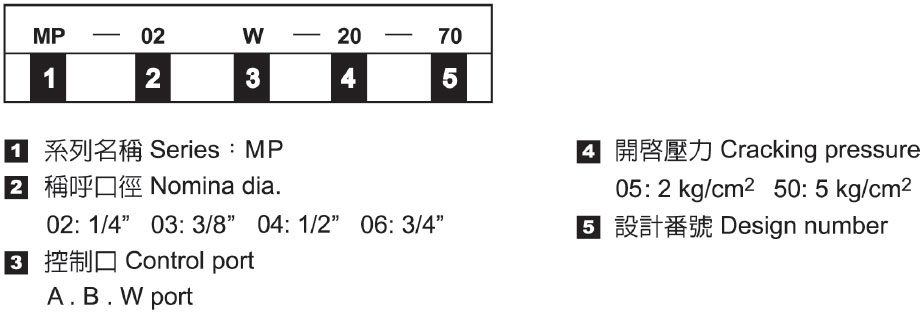

形式記號說明
![積層式引導止回閥-形式記號說明](http://www.taicin.com.cn/wp-content/uploads/2021/01/9e19e-IMG-MP-Nomenclature.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141834-4db96.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141834-46f8b.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141836-42d94.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141836-99af7.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141837-665a8.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141838-90e31.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141839-cacdf.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141840-893d3.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141840-544f4.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141841-b4d07.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141841-2cc7f.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141842-76237.jpg)
![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128141843-54afc.jpg)
