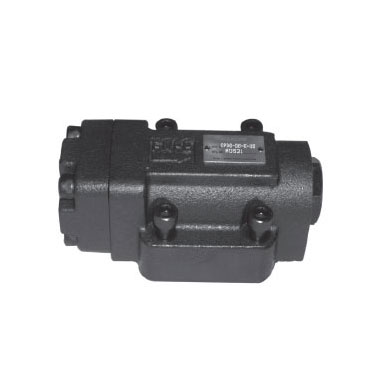

台湾TAICIN泰炘CPDG, CPDT引导止逆阀
引導止逆閥可以使流體單方向流動,也可使用外部引導壓力讓流體反方向流動
連接方式有板式和螺紋式

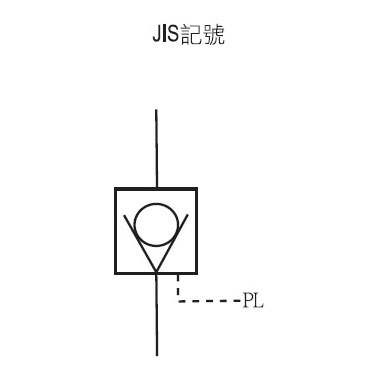

特性
- 當達到開啓壓力時,會讓液壓油單向流動,也可藉由外部引導壓力,達到液壓油反向流動。
規格
型式號碼 | 最大壓力 (KG/CM²) |
適用管徑 | 最大流量 (LPM) |
---|---|---|---|
CPDG-03 | 250 | 3/8” | 60 |
CPDT-03 | |||
CPDG-06 | 3/4” | 200 | |
CPDT-06 | |||
CPDG-10 | 1-1/4” | 450 | |
CPDT-10 |
形式記號說明

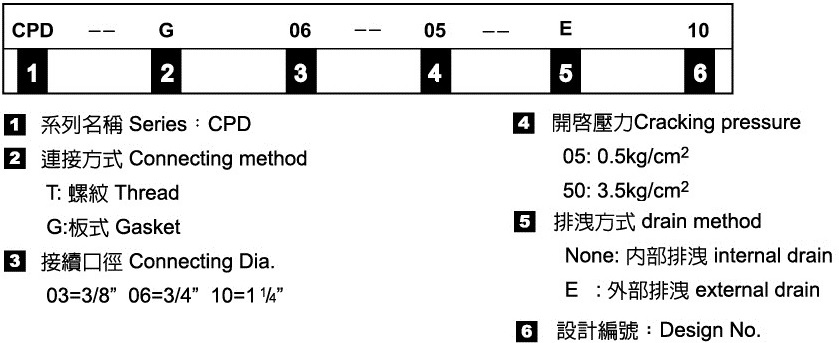

![引導止逆閥-形式記號說明](http://www.taicin.com.cn/wp-content/uploads/2021/01/5c086-CPDG.jpg)

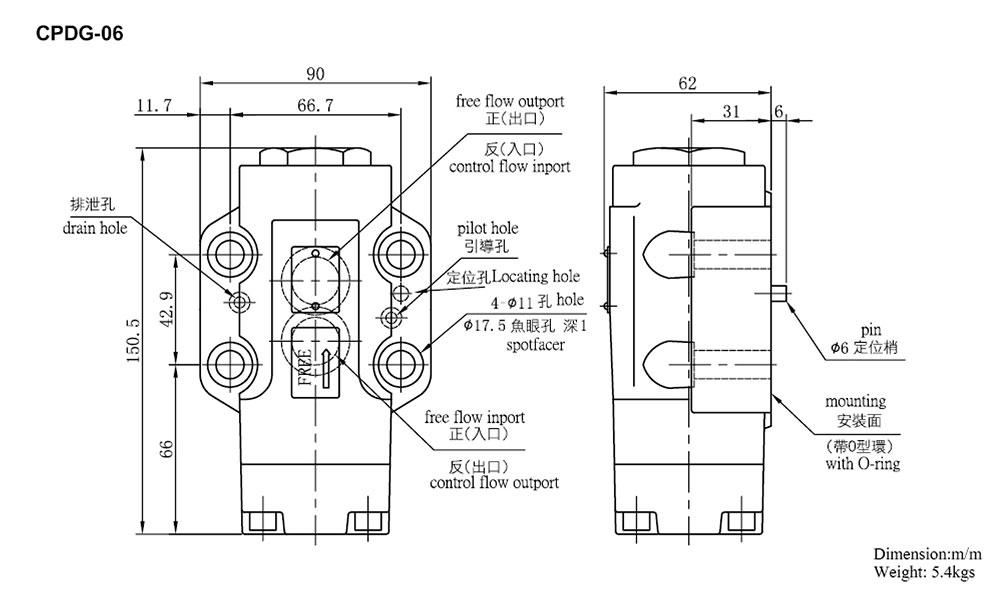

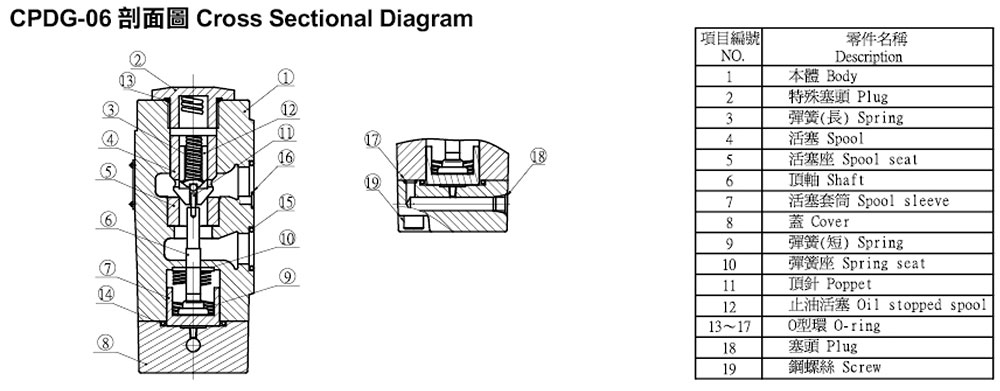

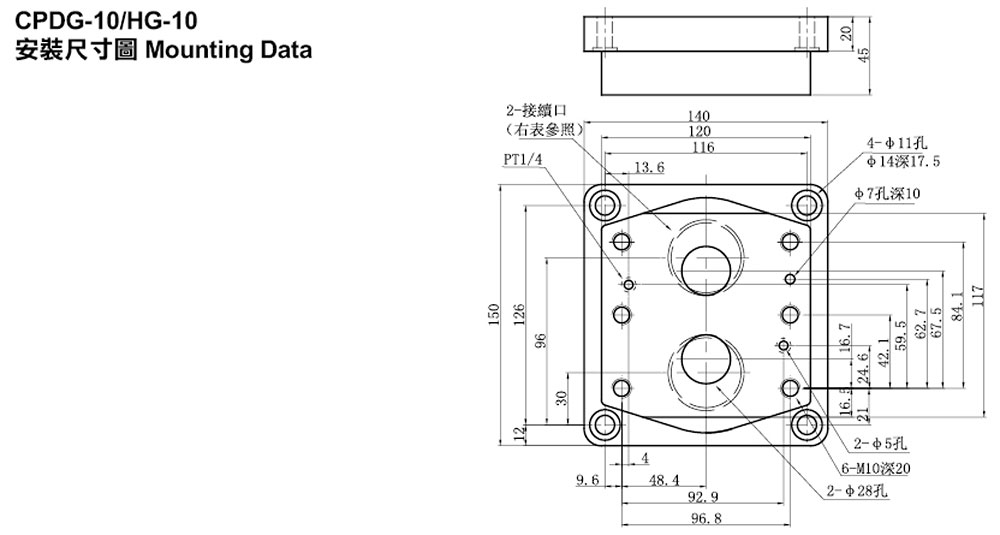

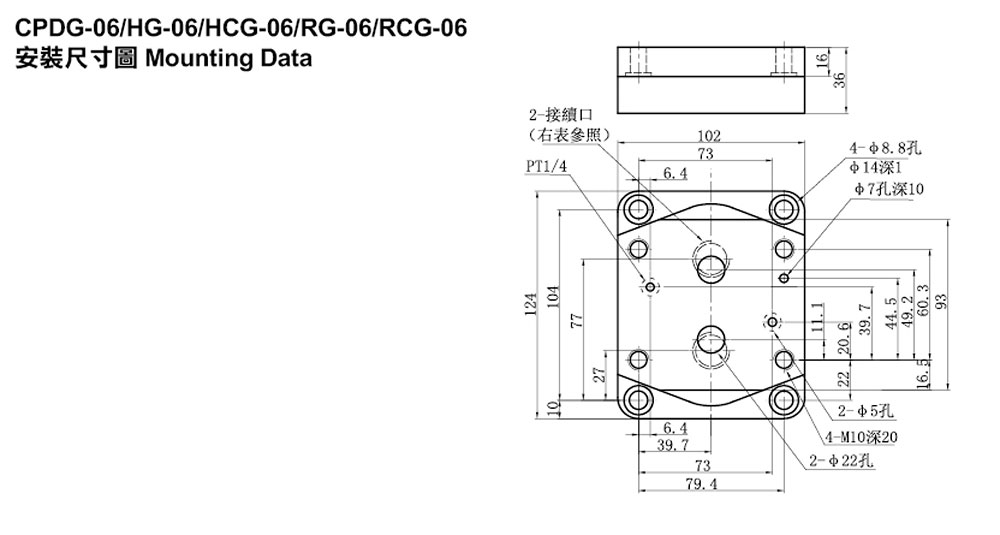

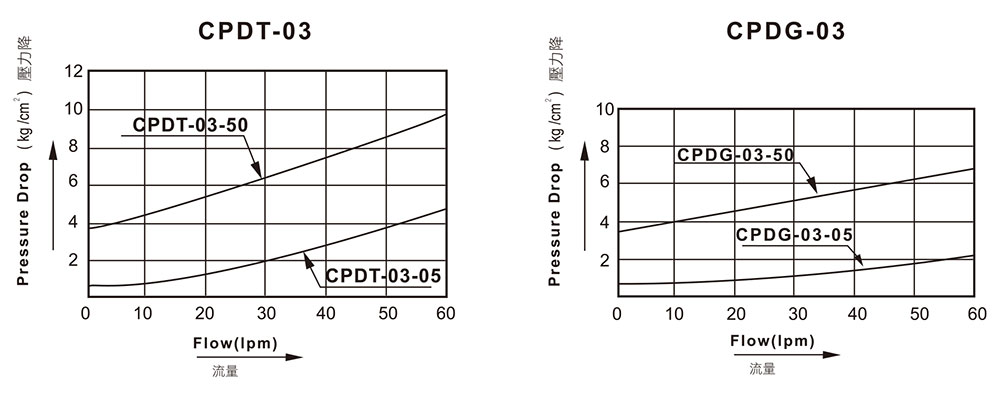

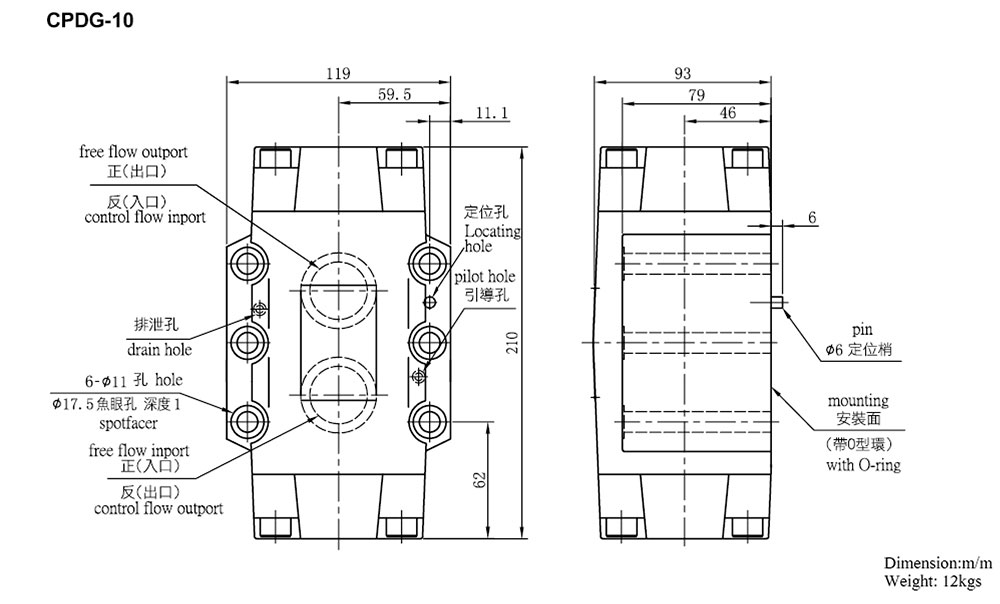

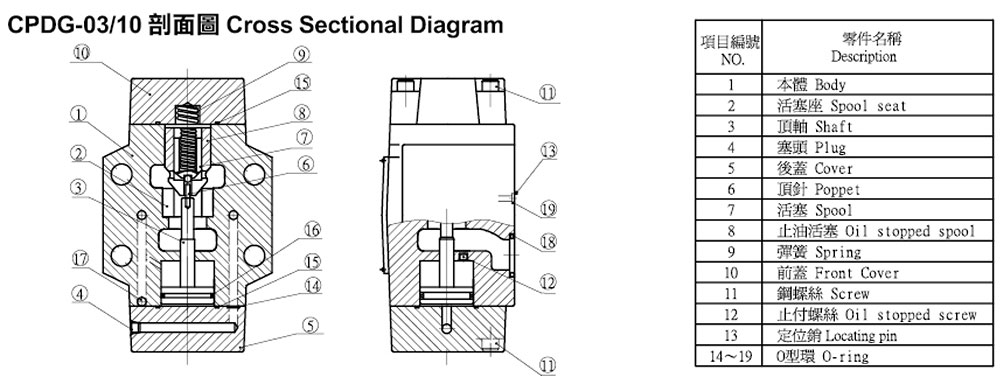

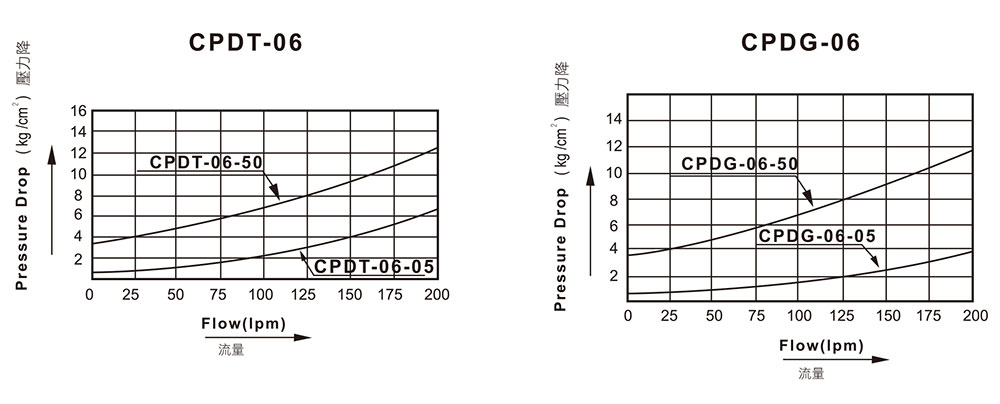

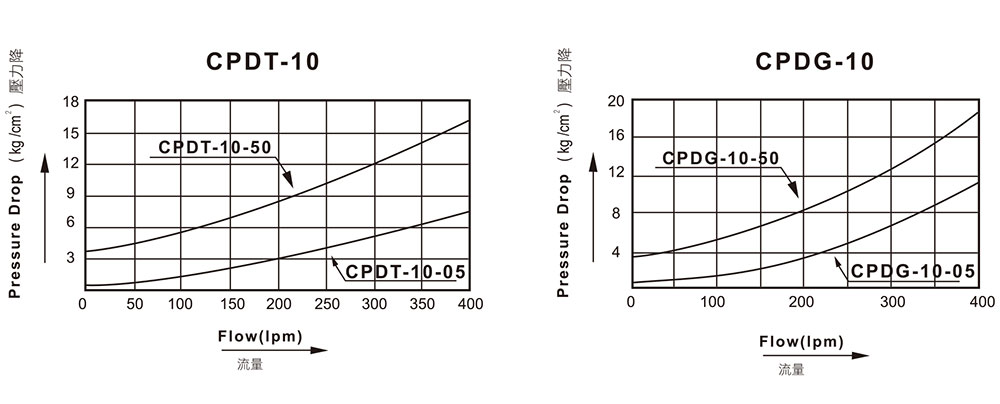

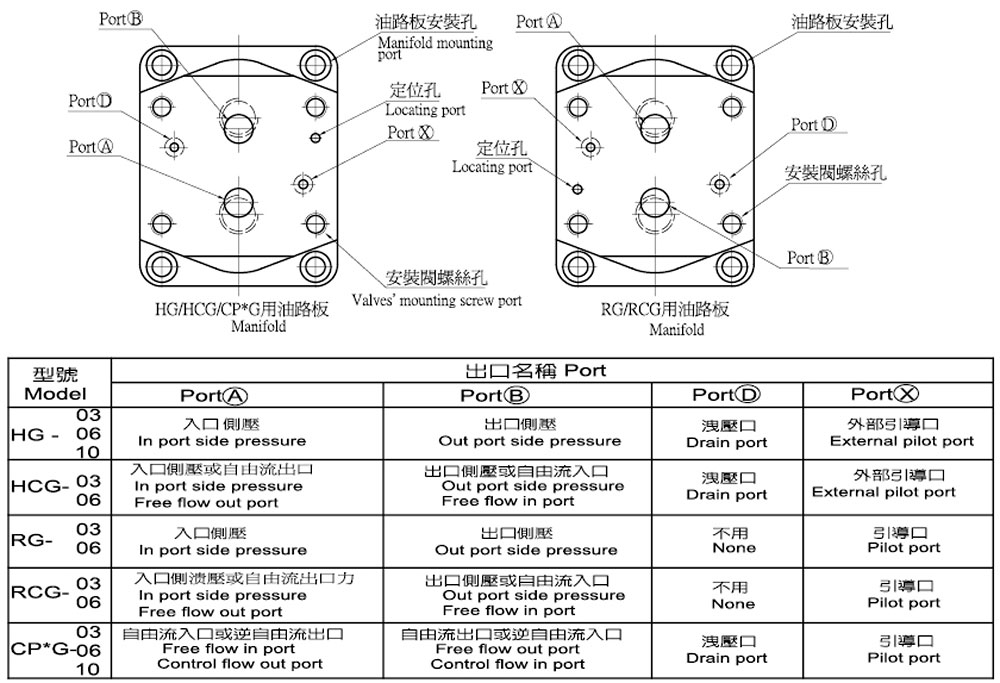

各類控制閥和油路板的關係表

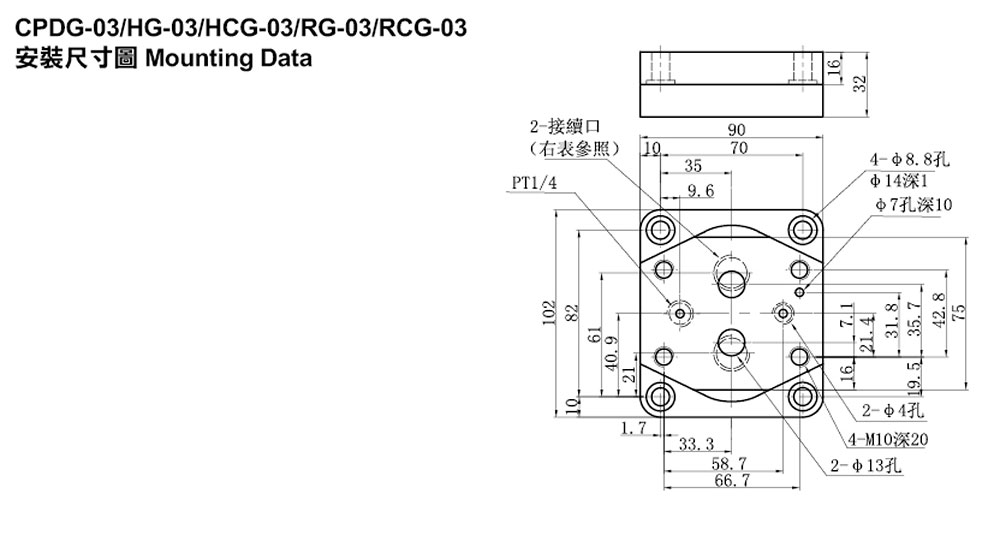

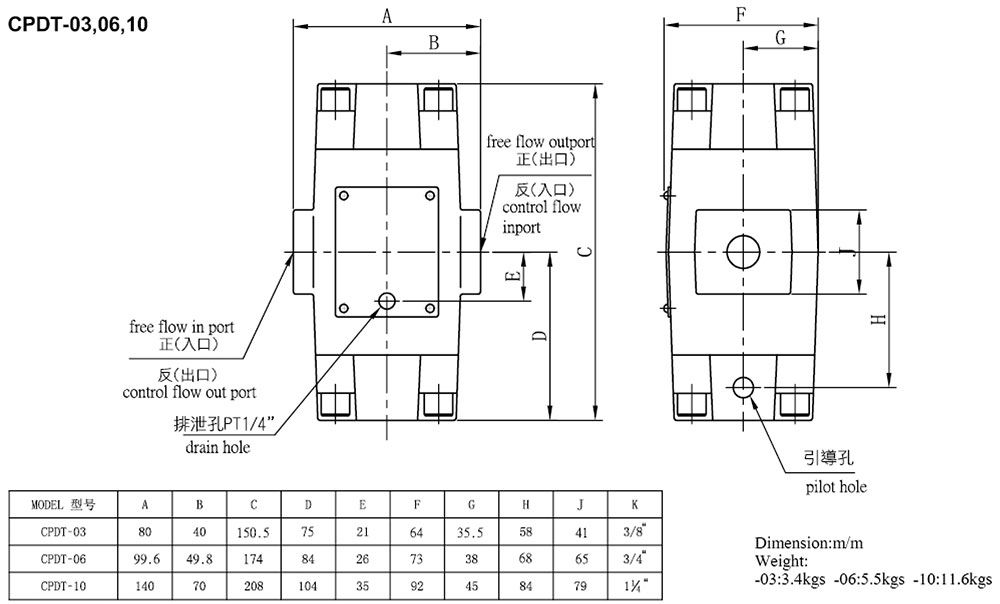

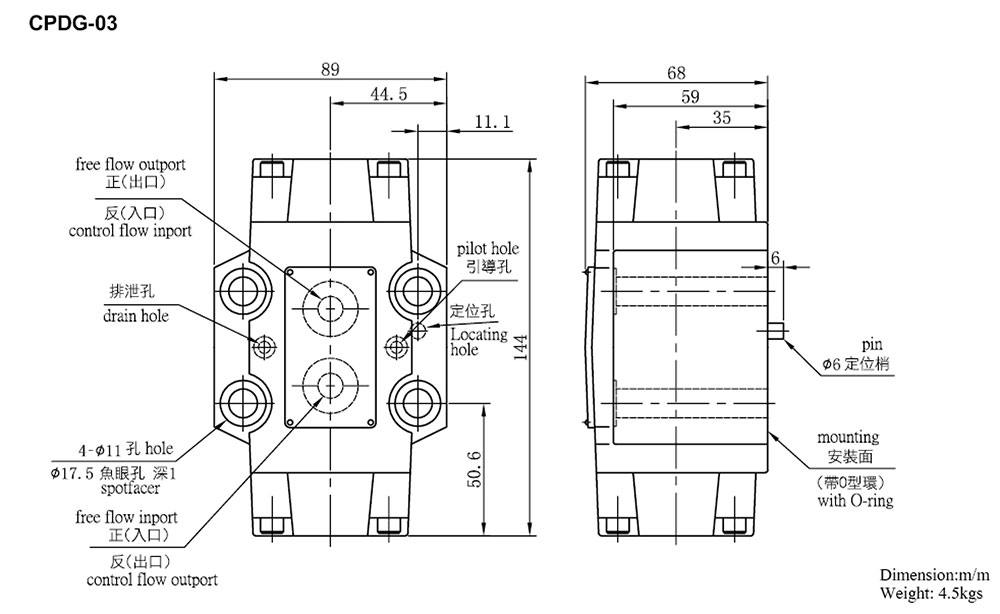

![](http://www.taicin.com.cn/wp-content/uploads/2021/01/20210128211834-e8312.jpg)
